Stainless Steel Quadrant Tile Trim – MK-ERS10
Customized Size Support
Customized Shapes
Color and Surface Customization
Custom Packaging for Minimum Orders
MOQ & Pricing: Minimum order quantities vary by model, material, finish and customization. Send your required quantity for each item so we can confirm the applicable MOQ and quotation.
Samples: Please request a sample to check the profile and finish before ordering. Sample availability, preparation time, any sample charges and courier costs are confirmed before dispatch.
Customization & Packaging: Share your drawing or sample, dimensions, material grade and finish requirements. Custom shapes, punching, labels and packaging are subject to feasibility, minimum quantities and any tooling charges, confirmed before production. Packing method and quantity per pack are agreed for each order.
Lead Time & Payment: Production lead time is confirmed after reviewing specifications, quantity and finish. The production schedule depends on receipt of the agreed deposit and final approval of order details. Payment terms are confirmed in the quotation and proforma invoice.
Shipping: Tell us your destination and whether you will use your own freight forwarder. Shipping arrangements, trade terms and related charges are confirmed in the quotation.
REQUEST A BULK QUOTATION
Send the product link or model, material grade, dimensions (including thickness and length), finish/color, quantity per item and destination. Include drawings, punching, logo or packaging requirements where applicable. Contact us by WhatsApp or email using the details at the top of this page.

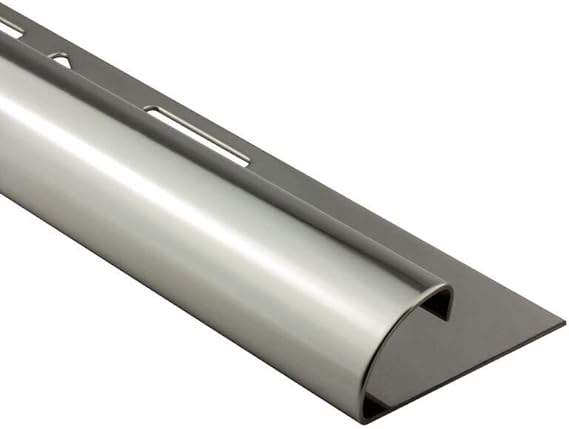

MK-ERS10 is a stainless steel quadrant tile trim with a quarter-circle exposed section. It forms a curved finish at the outer corner of a tiled surface.
The quadrant section is the defining feature of this model. Match the trim height to the tile build-up and confirm the drawing before selecting lengths and finishes for a wholesale order.
Request Wholesale QuoteProduct Specifications
| Material | Stainless steel 201 / 304 / 316; specify the required grade |
|---|---|
| Model / Article No. | MK-ERS10 |
| Profile structure | Quadrant tile trim with a quarter-circle section |
| Height | 8 / 10 / 11 / 12 / 15 mm |
| Thickness | 0.6 / 0.8 / 1.0 mm |
| Width | Custom width subject to drawing confirmation |
| Length | 2440 / 2500 / 2700 / 3050 mm |
| Finish | Silver: polished / brushed / satin; gold, rose gold and black: polished / brushed. Confirm the finish sample for the selected model. |
| OEM | Drawing-based customization, logo, label and packing requirements subject to order confirmation |
Listed options are subject to confirmation for the selected model and order. Not every combination is assumed available.
Wholesale & OEM Information
Wholesale Supply
For distributors, importers and building material wholesalers. Order quantity and supply terms are confirmed for the selected profile.
Customized Size
Provide the quadrant drawing and tile build-up for any size customization.
Customized Finish
Send your finish reference for evaluation. Finish availability and any sample approval depend on the selected model.
Private Label
Logo, label and packaging customization can be reviewed with the order requirements.
Sample
Sample availability, preparation time and shipping arrangements are confirmed for the chosen profile and finish.
Packaging
Protective film, export cartons and custom packing can be specified. Confirm the final packing method and quantities before shipment.
Applications

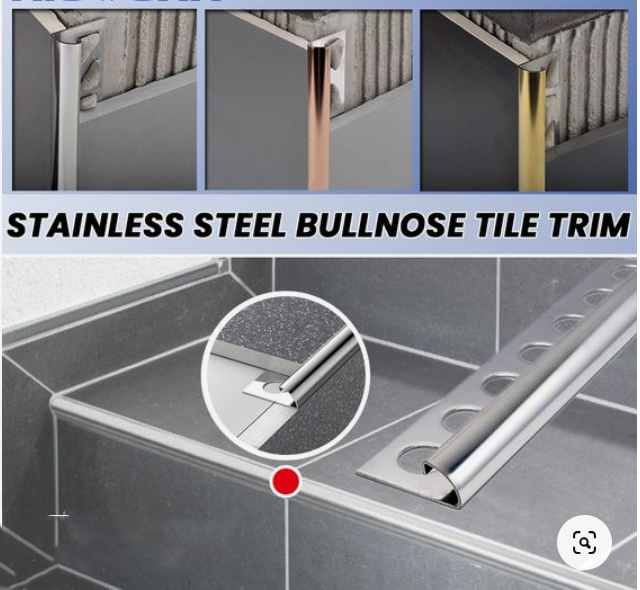

- External corners of tiled walls
- Curved edge finishing at exposed tiled borders
Confirm suitability against the installation drawing and the selected material grade.
Quotation Requirements
For an accurate quotation, please send us:
- Product model or drawing
- Dimensions
- Thickness
- Finish
- Quantity
- Required length
- Destination country
Please include the required quadrant detail and tile thickness.
Please also specify the required stainless steel grade and any logo, label or packing requirements.
Request Wholesale Quote
