Stainless Steel Tile Trims · Wholesale & OEM

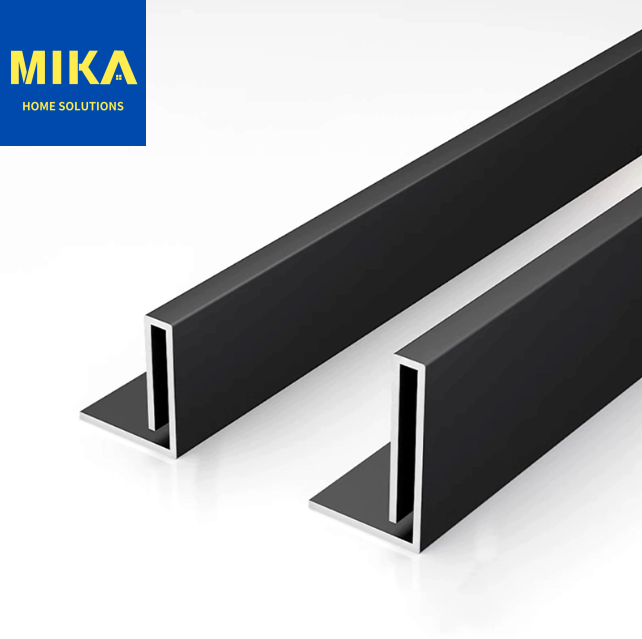

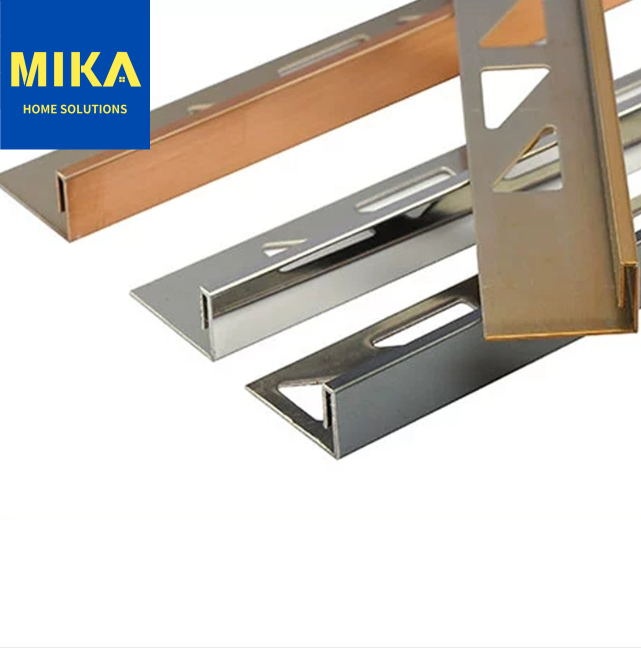

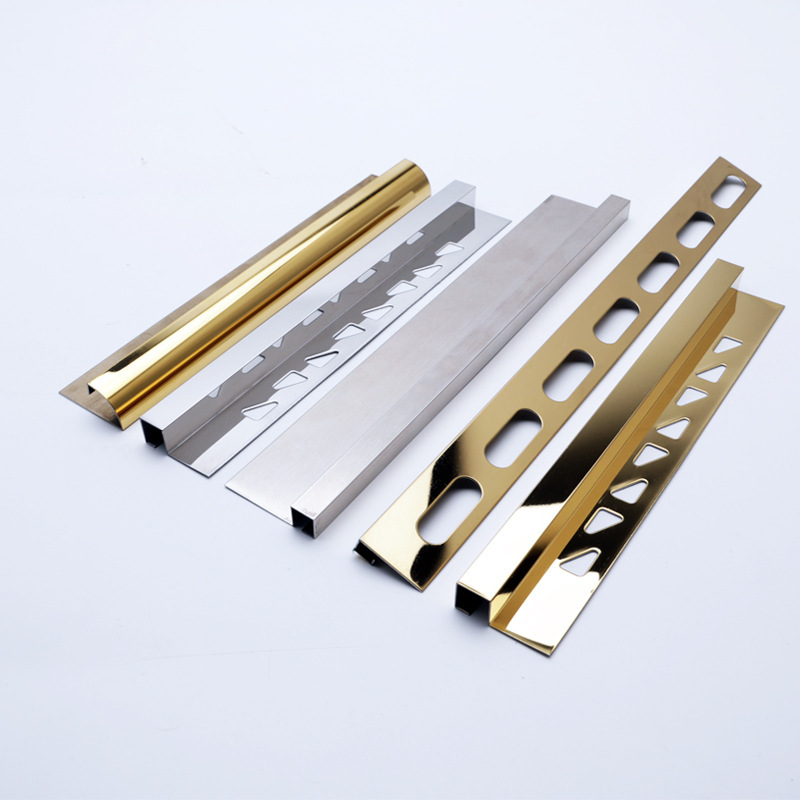

Stainless Steel L-Shaped Tile Edge Trim
This stainless steel L-shaped tile edge trim provides a straight finish to exposed tile edges on walls and floors. It covers the tile edge and helps protect it from chipping at the termination of a tiled surface.
The L-shaped section combines an exposed finishing edge with a perforated fixing flange positioned beneath the tile. Select the profile height to suit the tile thickness and installation detail.
Available in different dimensions and finishes for wholesale supply and OEM orders. Send your required specification or drawing so we can confirm the suitable profile and quotation.
Request Wholesale QuoteProduct Specifications
| Material | Stainless Steel 201 / 304 / 316; grade to be specified for the order. |
|---|---|
| Shape | L-shaped tile edge profile with perforated fixing flange. |
| Thickness | 0.6 / 0.8 / 1.0 mm |
| Length | 2440 / 2500 / 2700 / 3050 mm; custom lengths subject to confirmation. |
| Height | 8 / 10 / 11 / 12 / 15 mm; custom heights subject to confirmation. |
| Top Edge Width | 3 mm — width of the narrow top edge of the profile. |

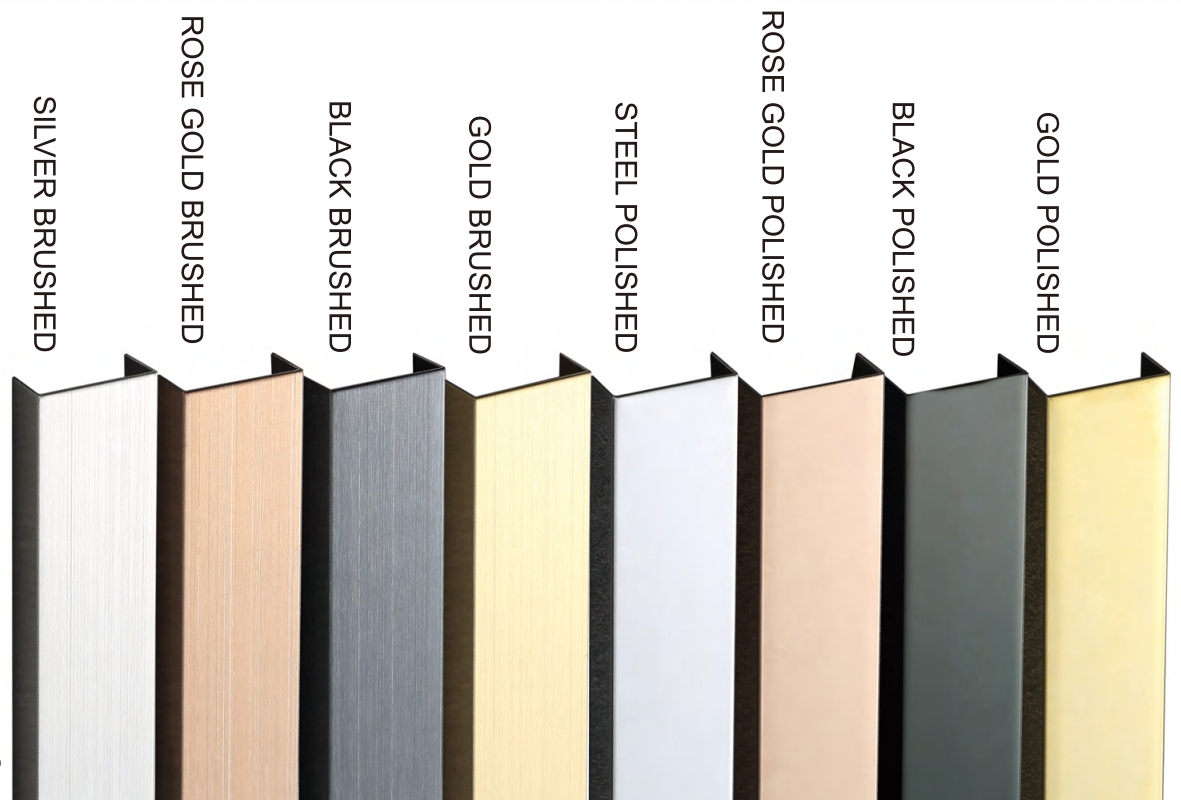

| Finish | Silver polished / brushed / satin; gold, rose gold and black polished / brushed. Other finishes subject to confirmation. |
| Application | Exposed tile edge protection and straight edge finishing on tiled walls and floors. |
| OEM | Custom dimensions, punched logo, labels and packaging, subject to drawing review and order requirements. |
Confirm the required combination of material grade, dimensions and finish before ordering. Custom specifications and minimum order quantities are evaluated for each inquiry.
Profile Detail & Finish Reference
Wholesale & OEM Information
Wholesale Supply
Available for distributors, importers and building material wholesalers. MOQ and pricing depend on the selected profile, specification and order quantity.
Customized Size
Custom profile dimensions can be evaluated from your drawing. Dimensions and production feasibility are confirmed before quotation.
Customized Finish
Brushed, polished / mirror and PVD finish options can be reviewed for the selected model. Confirm the required color and finish with a reference or sample.
Private Label
Logo, label and packaging customization is available, subject to order requirements and confirmation. Punched logos can be discussed for this profile.
Sample
Sample support depends on the profile and finish. Availability, preparation time, sample charges and courier costs are confirmed before dispatch.
Packaging
Protective film, export cartons and customized packing can be arranged according to the product and order. Confirm packing quantities and protection requirements before production.
Application

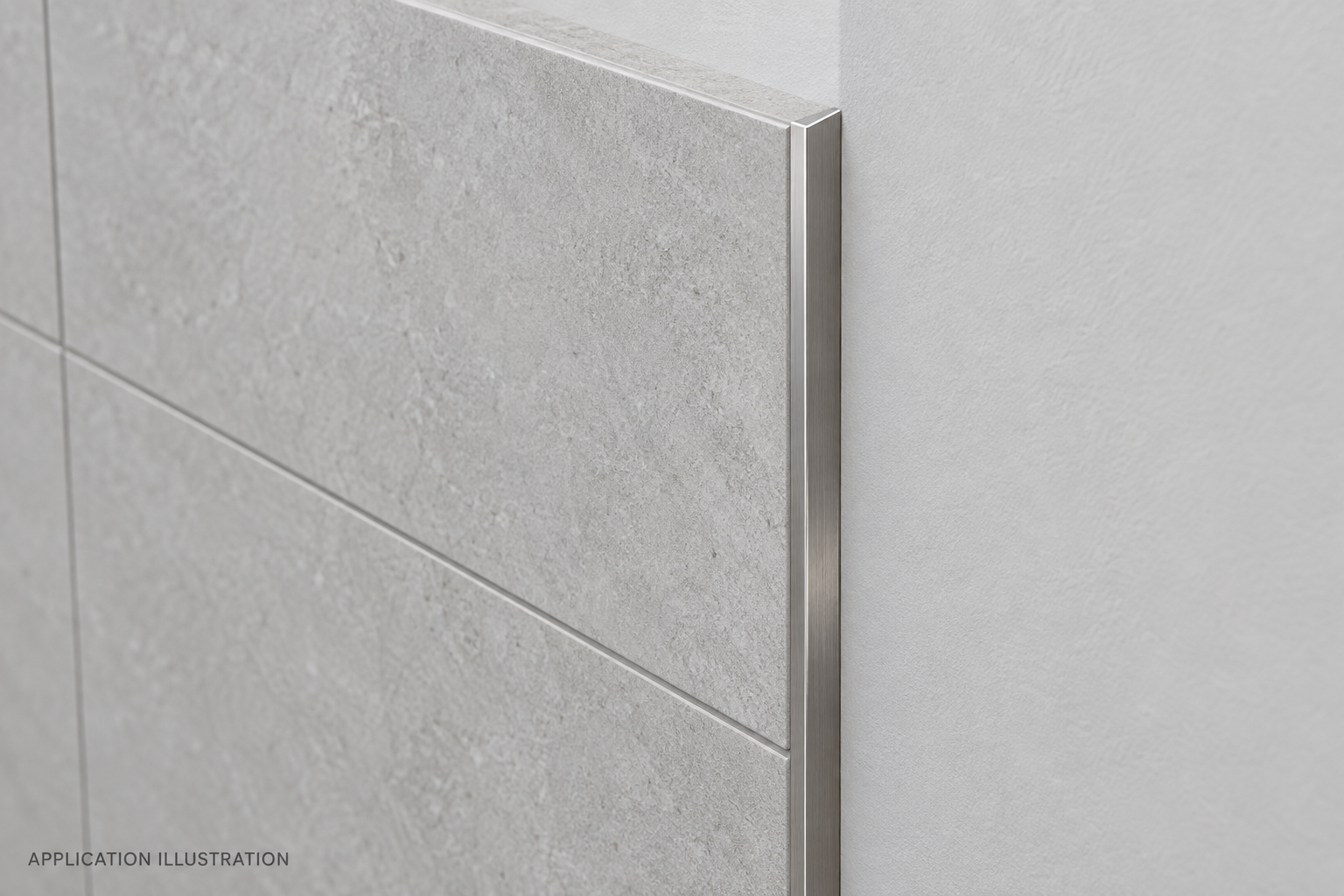

Generated visualization showing a straight tile edge finished with stainless steel trim. This is an application illustration, not a photograph of a completed project. Confirm the profile section and installation detail for your project.
Tile Edge Protection
Covers exposed tile edges at the end of a tiled surface and helps reduce edge chipping.
Wall Edge Finishing
Creates a straight termination line along tiled wall edges, returns and exposed borders.
Floor Edge Finishing
Finishes the edge of a tiled floor covering where the installation detail is compatible with this L-shaped profile.
For external corners or junctions with another floor covering, send the installation detail for suitability review. Profile height, tile thickness and adjoining surfaces must be checked together.
Quotation Requirements
For an accurate quotation, please send us:
- Product model or drawing
- Dimensions
- Thickness
- Finish
- Quantity
- Required length
- Destination country
Please also specify your preferred stainless steel grade and any logo, label or packing requirements.
